Overview

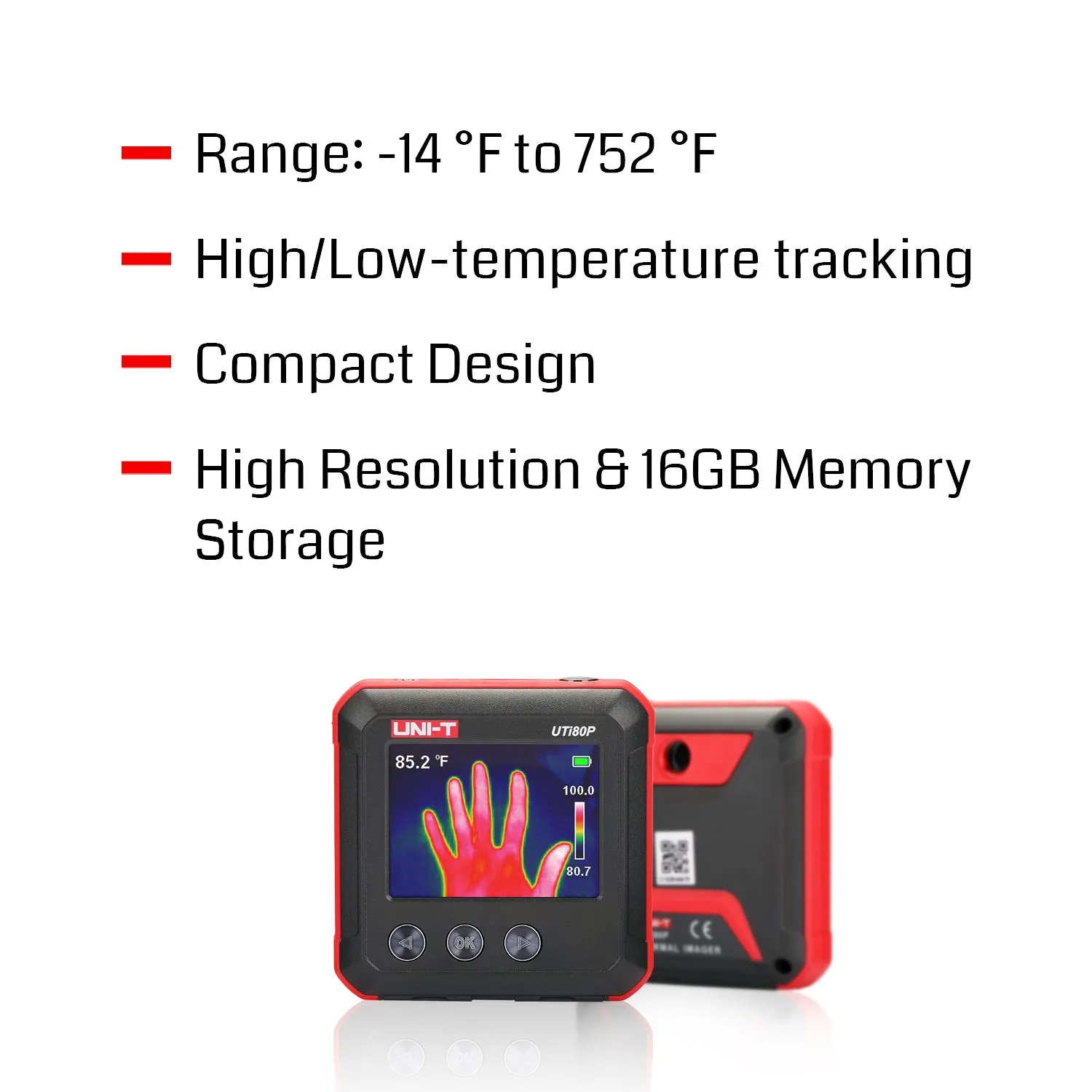

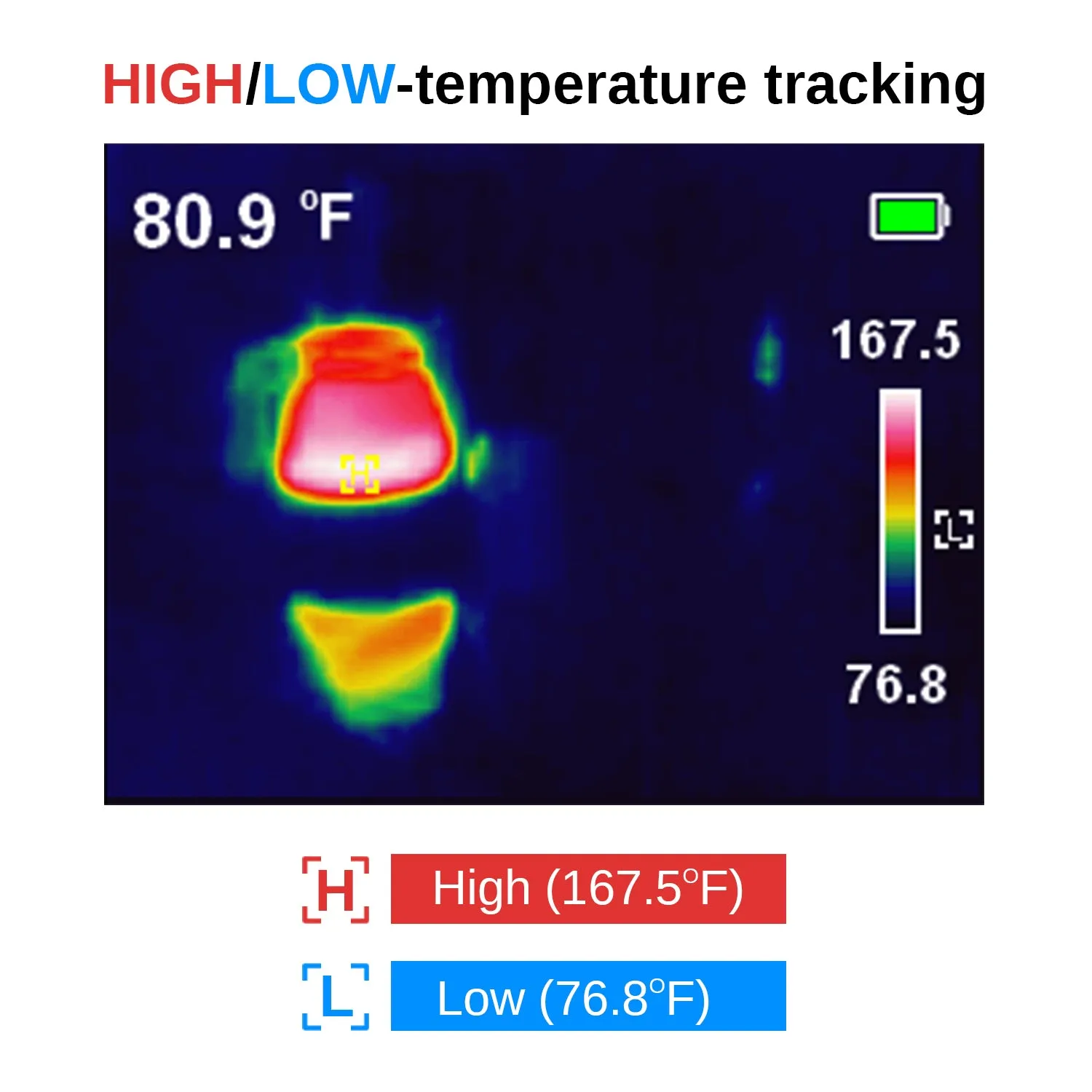

The UTi80P is a portable thermal Camera that supports fast thermal and high/low-temperature tracking, enabling you to quickly troubleshoot and detect dangers. 16GB memory card can store a large number of images and data and comes with a rechargeable Lithium battery for extended usage.

Technical Specification

• Temperature Range: -14 °F to 752 °F
• Accuracy:  ±2 °F / ±2%, whichever is greater
• Emissivity: 0.95 (default, 0.1-0.99 adjustment)
• Measurement Resolution: 0.1 °F
• Response Time: ≦500ms
• IR Resolution: 4800 pixels (80 x 60)
• Pixel Size: 17µm
• Color Palette: Rainbow, iron red, grey,  fast thermal tracking
• Spectral Range: 8~14µm
• FOV: 50° x 38°
• Thermal Sensitivity: ≦150mk
• Frame Rate: ≦9Hz
• Image Format: BMP (320 x 240)

Parameters

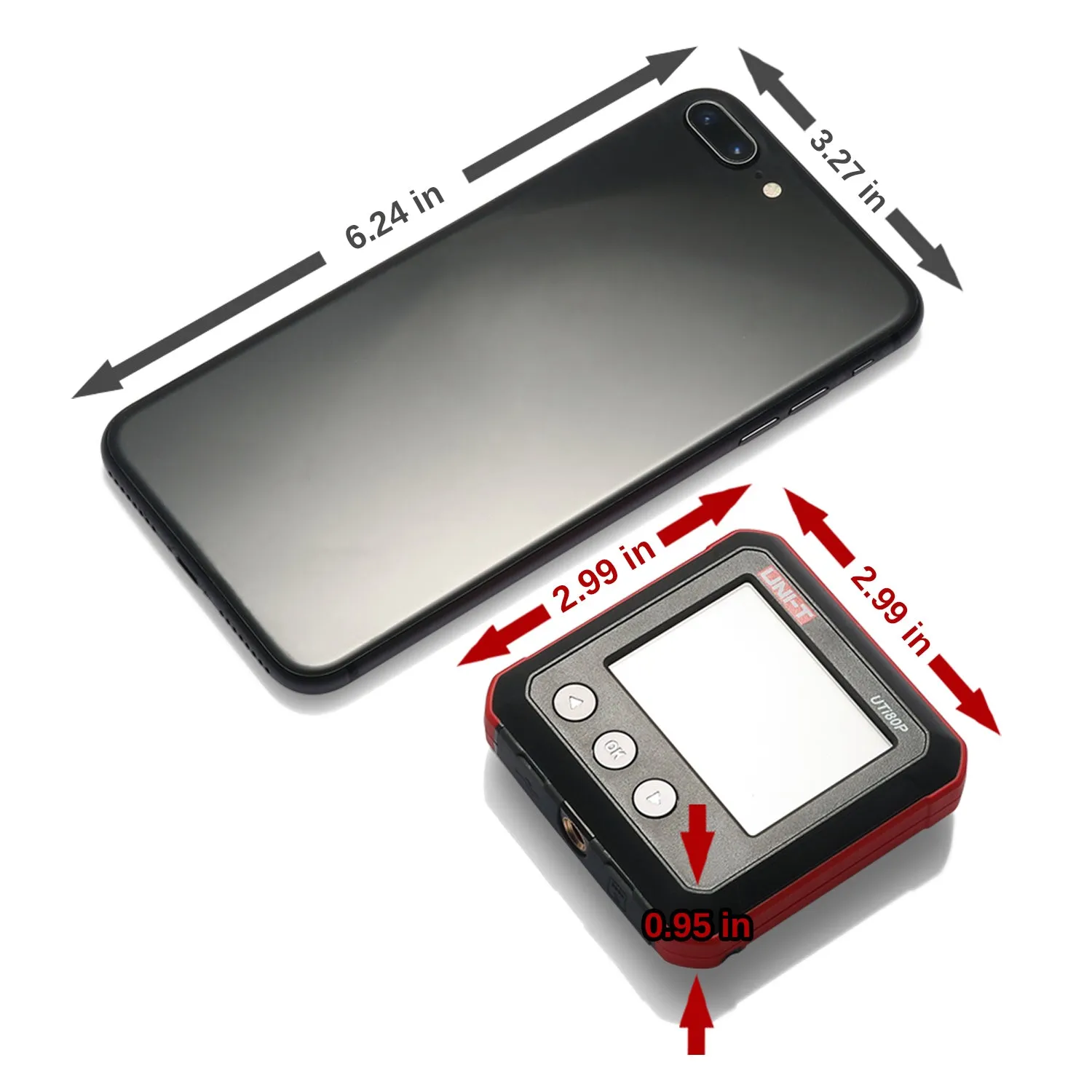

• Item Size: 3 x 3 x 0.9 inch
• Display Type: 2.4” TFT LCD
• Display Resolution: 320 x 240 pixels
• Battery:  3.7V/1300mAh, Rechargeable Lithium Battery
• Auto Power Off: Yes
• Battery Life: Approx. 3-4 hours
• Certification: CE
• Storage Card: 16GB Micro SD card
• Storage Temperature: -4 °F to 140 °F
• Working Temperature: 32 °F to 122 °F
• Altitude: ≦ 2000 meters

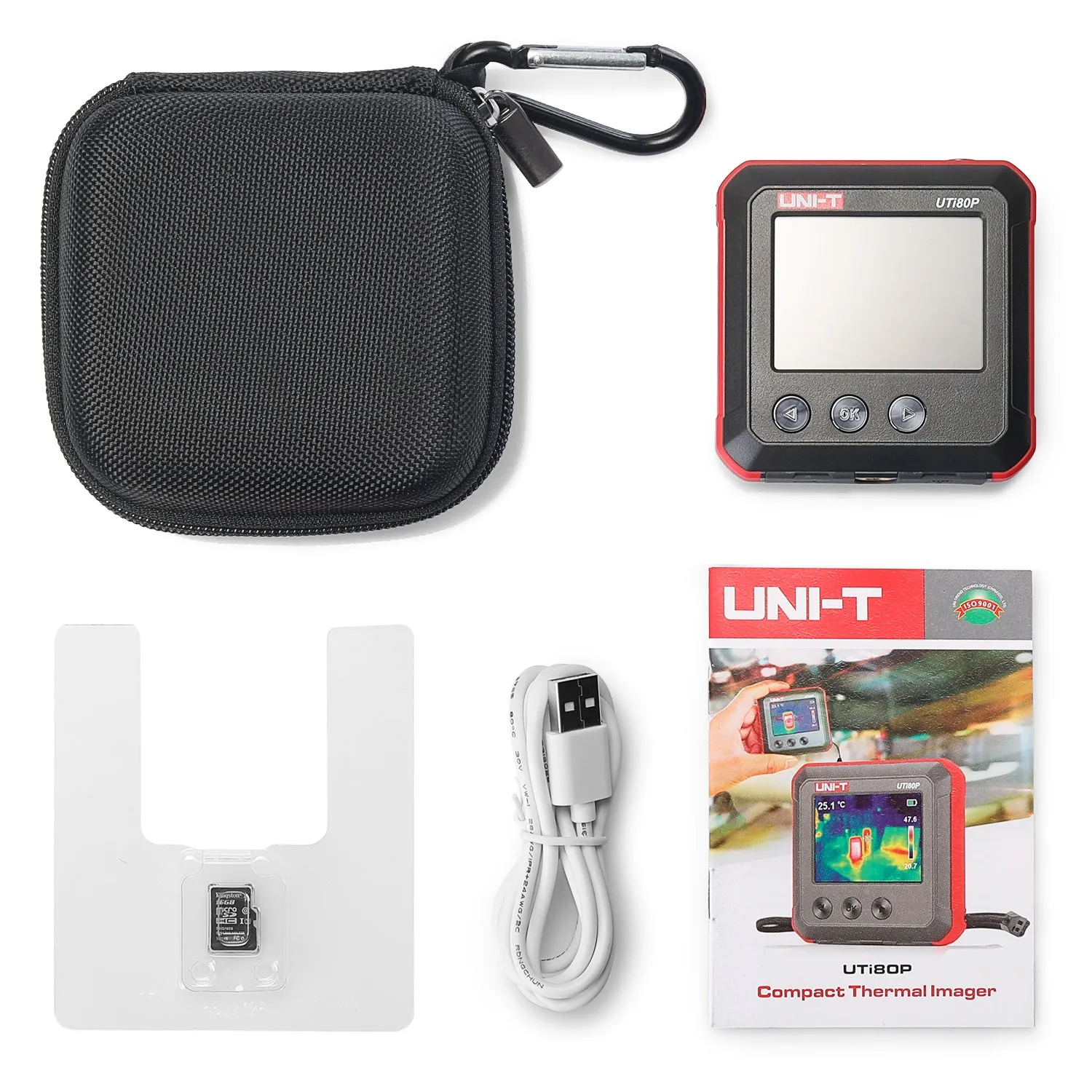

Package List

• 1 x UTi80P Compact Thermal Camera
• 1 x 16GB Micro SD Card
